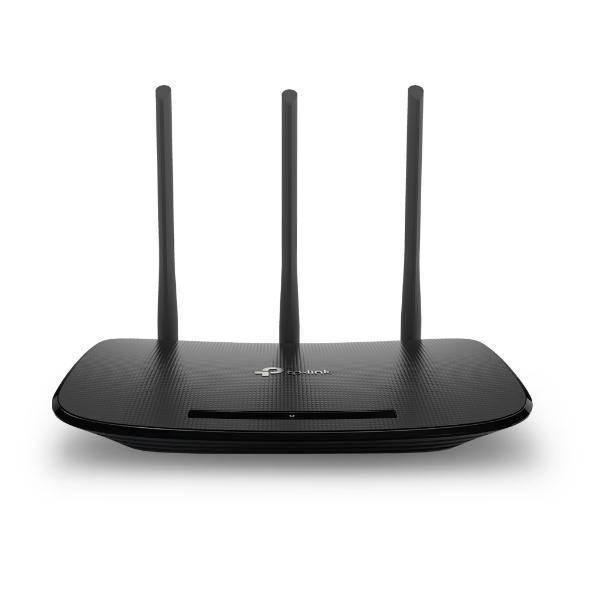

TP-Link TL-WR940N 450Mbps Wireless WiFi Router

Description

TP-Link TL-WR940N 450Mbps Wireless WiFi Router

TP-Link TL-WR940N 450Mbps Wireless WiFi Router is a combined wired/wireless network connection device designed specifically for small business and home office networking requirements. With MIMO Technology, TL-WR940N creates an exceptional and advanced wireless performance, making it ideal for streaming HD video, VoIP and online gaming. Also, WPS button on the sleek and fashionable exterior ensures WPA2 encryptions, preventing the network from outside intrusions.

Tp-link TL-WR940N 450Mbps Wireless N Router offers ideal speed for online gaming, video streaming and uninterrupted browsing in the office, with its three antennae it offer broad with stability.

450Mbps Wireless N Router TL-WR940N is a combined wired/wireless network connection device designed specifically for small business and home office networking requirements. With MIMO Technology,

TL-WR940N 450Mbps router creates an exceptional and advanced wireless performance, making it ideal for streaming HD video, VoIP and online gaming. Also, WPS button on the sleek and fashionable exterior ensures WPA2 encryptions, preventing the network from outside intrusions.

It Complies with the IEEE 802.11n standard, TL-WR940N can establish a wireless network and get up to 18X the speed and 6X the range of conventional 11g products. Also, with transmission rates up to 450Mbps,

This router shows more excellent abilities to mitigate data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products.

Tp-link TL-WR940N router has the speed to work smoothly with almost any bandwidth intensive application including VoIP, HD streaming, or online gaming, without the lag. Using its powerful N technologies, the router is also able to mitigate data loss over long distances and through obstacles turning your home and even your yard into one big hot – spot.

Tp-link TL-WR940N router specifications
INTERFACE 4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT
BUTTON Wireless On/Off Button,WPS/Reset Button,
Power On/Off Button
EXTERNAL POWER SUPPLY 9V / 0.6A
WIRELESS STANDARDS IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
DIMENSIONS ( W X D X H ) 9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
ANTENNA 3*5dBi Fixed Omni Directional Antenna
WIRELESS FEATURES
FREQUENCY 2.4-2.4835GHz
SIGNAL RATE 11n: Up to 450Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
RECEPTION SENSITIVITY 270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
TRANSMIT POWER CE:
<20dBm(2.4GHz)
FCC:
<30dBm
WIRELESS MODES Router Mode,
Range Extender(for V5 and later),
Access Point Mode (for V5 and later)
WIRELESS FUNCTIONS Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
WIRELESS SECURITY 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK
SOFTWARE FEATURES
QUALITY OF SERVICE WMM, Bandwidth Control
WAN TYPE Dynamic IP/Static IP/PPPoE/
PPTP(Dual Access)/L2TP(Dual Access)/BigPond
MANAGEMENT Access Control
Local Management
Remote Management
DHCP Server, Client, DHCP Client List,
Address Reservation
PORT FORWARDING Virtual Server,Port Triggering, UPnP, DMZ
DYNAMIC DNS DynDns, Comexe, NO-IP
VPN PASS-THROUGH PPTP, L2TP, IPSec (ESP Head)
ACCESS CONTROL Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
FIREWALL SECURITY DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
PROTOCOLS Support IPv4
GUEST NETWORK 2.4GHz Guest Network×1
OTHERS
CERTIFICATION FCC, RoHS
PACKAGE CONTENTS TL-WR940N
Power supply unit
Resource CD
Ethernet Cable
Quick Installation Guide
SYSTEM REQUIREMENTS Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows8/ 8.1/10
MAC® OS, NetWare®, UNIX® or Linux
ENVIRONMENT Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
